Quick Wireless Summary

WLAN Modes:

WLAN has two basic modes of operation:

* Ad-hoc mode: In this mode devices send data directly to each other without an AP.

* Infrastructure mode: Connect to a wired LAN, supports two modes (service sets):

+ Basic Service Set (BSS): uses only a single AP to create a WLAN
+ Extended Service Set (ESS): uses more than one AP to create a WLAN, allows roaming in a larger area than a single AP. Usually there is an overlapped area between two APs to support roaming. The overlapped area should be more than 10% (from 10% to 15%) to allow users moving between two APs without losing their connections (called roaming). The two adjacent APs should use non-overlapping channels to avoid interference. The most popular non-overlapping channels are channels 1, 6 and 11 (will be explained later).

Roaming: The ability to use a wireless device and be able to move from one access point’s range to another without losing the connection.

Cisco Access Points (APs) can operate in one of two modes: autonomous or lightweight
+ Autonomous: self-sufficient and standalone. Used for small wireless networks. Each autonomous AP must be configured with a management IP address so that it can be remotely accessed using Telnet, SSH, or a web interface. Each AP must be individually managed and maintained unless you use a management platform such as Cisco DNA Center.
+ Lightweight: The term ‘lightweight’ refers to the fact that these devices cannot work independently. A Cisco lightweight AP (LAP) has to join a Wireless LAN Controller (WLC) to function. LAP and WLC communicate with each other via a logical pair of CAPWAP tunnels.

An LAP operates in one of six different modes:
+ Local mode (default mode): It offers one or more basic service sets (BBS) on a specific channel. AP maintains a tunnel towards its Wireless Controller. When the AP is not transmitting wireless client frames, it measures noise floor and interference, and scans for intrusion detection (IDS) events every 180 seconds.

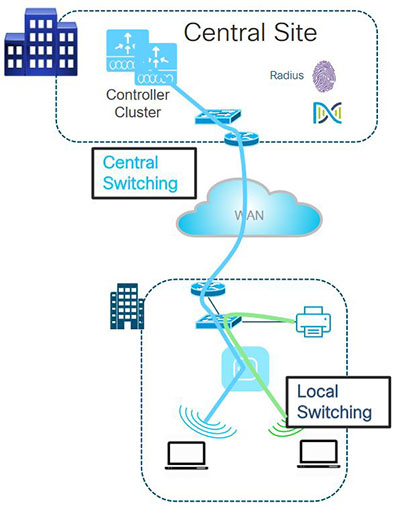

+ FlexConnect, formerly known as Hybrid Remote Edge AP (H-REAP), mode: allows data traffic to be switched locally and not go back to the controller if the CAPWAP to the WLC is down. The FlexConnect AP can perform standalone client authentication and switch VLAN traffic locally even when it’s disconnected to the WLC (Local Switched). FlexConnect AP can also tunnel (via CAPWAP) both user wireless data and control traffic to a centralized WLC (Central Switched). The AP can locally switch traffic between a VLAN and SSID when the CAPWAP tunnel to the WLC is down.

FlexConnect addresses the wireless connectivity needs in branch locations by permitting wireless user traffic to terminate locally rather than tunneled across the WAN to a central WLC.
+ Monitor mode: does not transmit at all. It acts like a dedicated sensor for location-based services (LBS), rogue AP detection, and Checks Intrusion Detection System (IDS). In this mode, AP will not broadcast an SSID so clients are unable to connect to it. When Cisco CleanAir is enabled in monitor mode, the access point provides air quality and interference detection reports for all monitored channels.
+ Rogue detector mode: monitor for rogue APs. It does not handle data at all.
+ Sniffer mode: run as a sniffer and captures and forwards all the packets on a particular channel to a remote machine where you can use protocol analysis tool (Wireshark, Airopeek, etc) to review the packets and diagnose issues. Strictly used for troubleshooting purposes.
+ Bridge mode: bridge together the WLAN and the wired infrastructure together.
+ Sensor mode: this is a special mode which is not listed in the books but you need to know. In this mode, the device can actually function much like a WLAN client would associating and identifying client connectivity issues within the network in real time without requiring an IT or technician to be on site. The advantage of sensor mode is to allow the AP to use its own radio (as a client) to test the quality and performance of the network at any time.

– Control and Provisioning for Wireless Access Point (CAPWAP) is an IETF standard protocol which enables a WLC to manage multiple APs. CAPWAP is similar to LWAPP except the following differences:

+ CAPWAP uses Datagram Transport Layer Security (DTLS) for authentication and encryption to protect traffic between APs and controllers. LWAPP uses AES.
+ CAPWAP has a dynamic maximum transmission unit (MTU) discovery mechanism.
+ CAPWAP runs on UDP ports 5246 (control messages) and 5247 (data messages)

Signal to Noise Ratio (SNR) is defined as the ratio of the transmitted power from the AP to the ambient (noise floor) energy present. To calculate the SNR value, we add the Signal Value to the Noise Value to get the SNR ratio. A positive value of the SNR ratio is always better.

The 2.4 GHz band is subdivided into multiple channels each allotted 22 MHz bandwidth and separated from the next channel by 5 MHz.
-> A best practice for 802.11b/g/n WLANs requiring multiple APs is to use non-overlapping channels such as 1, 6, and 11.

Types of external antennas:
+ Omnidirectional: Provide 360-degree coverage. Ideal in houses and office areas
+ Directional: Focus the radio signal in a specific direction. Examples are the Yagi and parabolic dish
+ Multiple Input Multiple Output (MIMO) – Uses multiple antennas (up to eight) to increase bandwidth

WPA2 and WPA3

WPA2 is classified into two versions to encrypt Wi-Fi networks:
+ WPA2-Personal uses pre-shared key (PSK)
+ WPA2-Enterprise uses advanced encryption standard (AES)

Similar to WPA2, WPA3 includes:
+ WPA3-Personal: applies to small-scale networks (individual and home networks). For WPA3-Personal, we can only use CCMP128(AES) for Encryption; CCMP256, GCMP128 and GCMP256 encryption ciphers are not available for WPA3-Personal.
+ WPA3-Enterprise: applies to medium- and large-sized networks with higher requirements on network management, access control, and security, and uses more advanced security protocols to protect sensitive data of users.

WPA3 uses AES encryption and SAE for authentication methods.

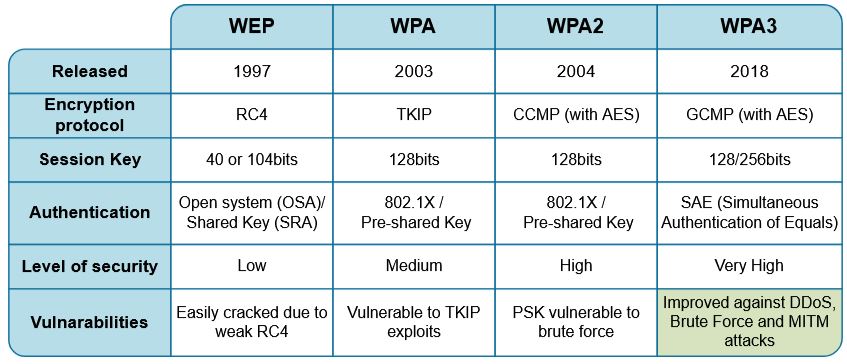

WPA3 provides improvements to the general Wi-Fi encryption, thanks to Simultaneous Authentication of Equals (SAE) replacing the Pre-Shared Key (PSK) authentication method used in prior WPA versions. With SAE, the user experience is the same (choose a passphrase to connect), but SAE automatically adds a step to the handshake, which makes brute force attacks ineffective. SAE enables individuals or home users to set Wi-Fi passwords that are easier to remember and provide the same security protection even if the passwords are not complex enough.

WPA3 requires the use of Protected Management Frames. These frames help protect against forging and eavesdropping.

WPA3 networks include perfect forward secrecy. With this protection, even if an adversary successfully guesses the correct network password, they cannot observe a user’s earlier interactions on the network, determine the session keys for that interaction, or decrypt wireless traffic from other users on the network

Wireless Standards

WLC terms

A dynamic interface is an interface that maps a WLAN to a wired VLAN or subnet. Dynamic interfaces are used to control and secure the traffic on the WLAN just like we use VLANs and subnets on the LAN for that purpose.

Interface groups are logical groups of interfaces. An interface can be part of multiple interface groups.

When many APs support the same WLAN, all users of that WLAN, on all APs connected to the same controller, are sent to the same dynamic interface.

By default there is a AP Group called “default-group” created on your WLC and all the WLANs where WLAN ID is between 1-16 map to this group.
